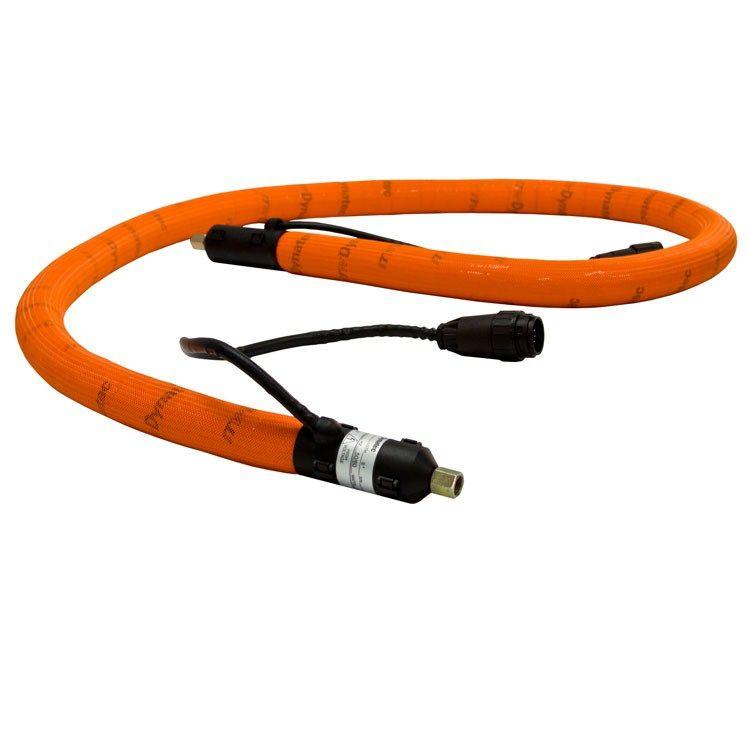

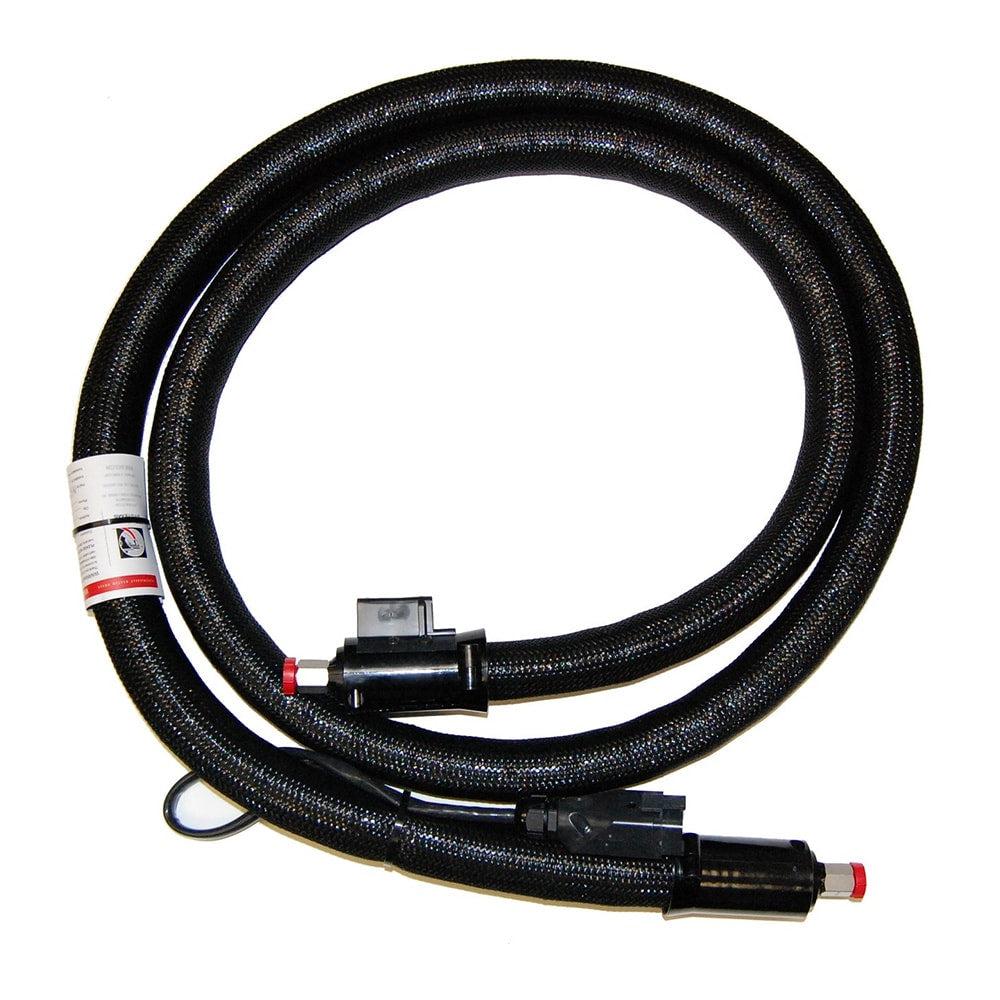

The MeltX Heated Hose Pipe is the single most critical connection. Precision-wound heating maintains setpoint temperature along its entire length.
±2°C
Temperature Uniformity
0.3m – 6m
Standard Length Range
100 bar
Max Pressure Rating
Uniformly distributed heating wire with no cold zones.
Multi-layer reinforcement allows repeated flexing.
Rotate freely to eliminate torsional stress during installation.
Designed for all standard EVA, PUR, PSA adhesives.
| Parameter | Value |
|---|---|
| Standard Lengths | 0.3m to 6m |
| Max Operating Temp | 220°C |
| Max Operating Pressure | 100 bar |
| Inner Diameter | 6mm / 8mm / 10mm |
| Outer Jacket | Silicone / PTFE |
Drum & Pail Unloader-Type Hot Melt Melters Optimized for High-Volume Packaging
One Screen. Total System Control. Every Parameter at Your Fingertips.
Repeatable Bead & Stripe Application for High-Speed Assembly Lines
Our engineers will recommend the right Heated Hose Pipe model for your production volume and adhesive type.
Talk to an Engineer
